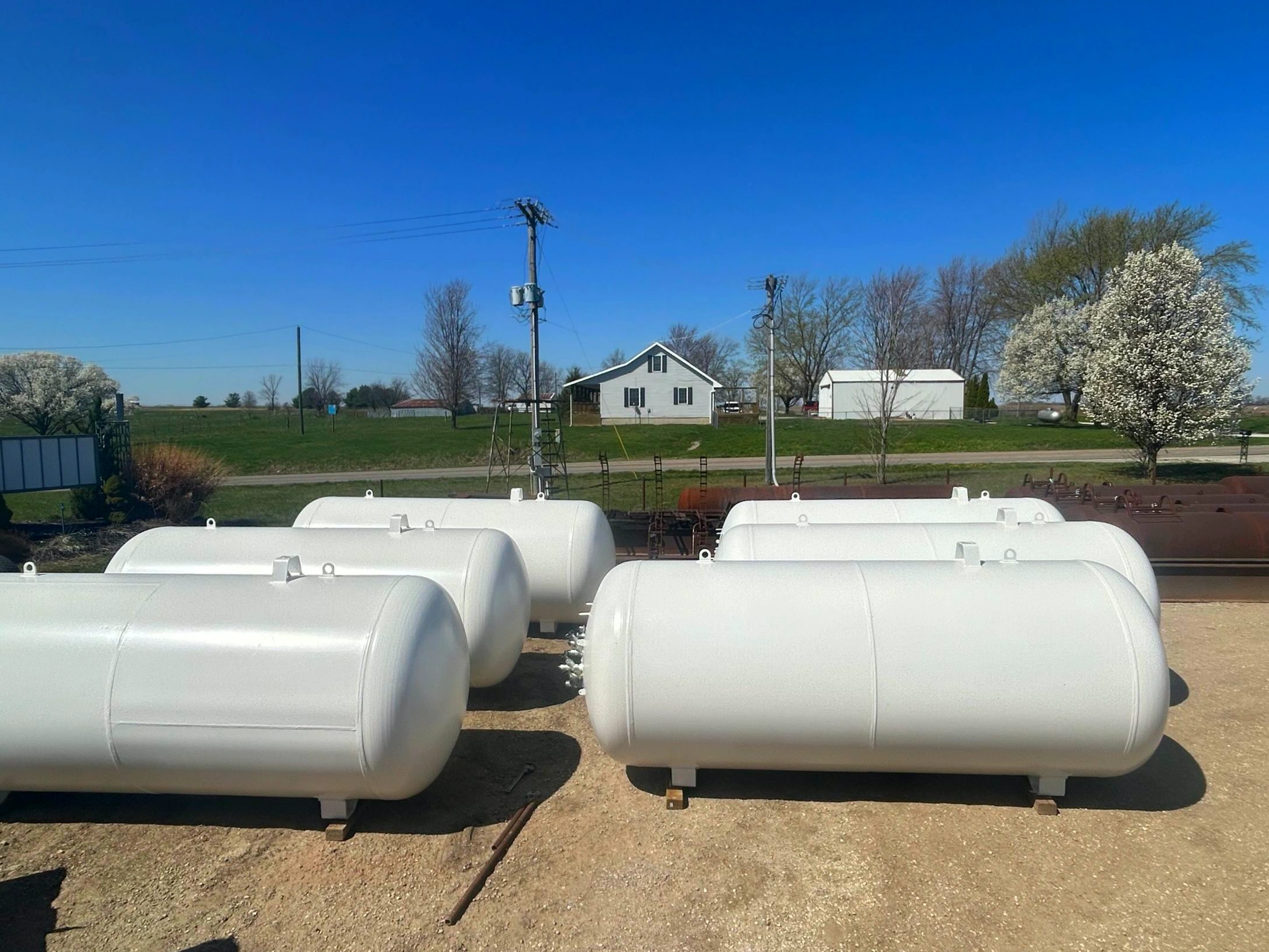

Anhydrous Ammonia (NH3) Nurse tanks

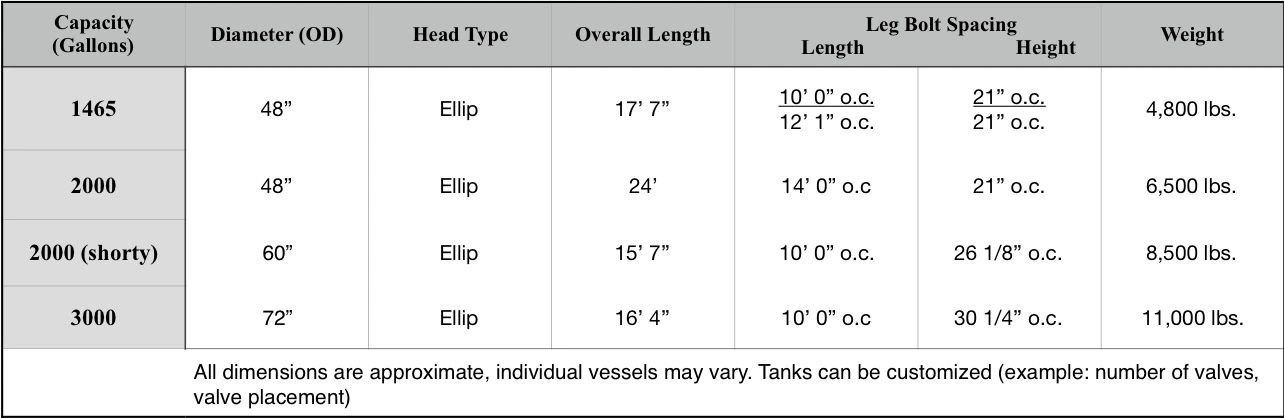

Available Sizes
Standard: 1,465, 2,000, & 3,000 gallon
Shorty: 2,000 gallon
All of our tanks are 100% American Made
1465 Gallon
Our Innovative Tank Design Features:
- Made from 1/2" steel (almost twice the thickness as the competitors)
- Standard 1 1/2" liquid withdrawal valve
- Standard 1 1/2" fill and vapor valves
- Standard bleeder/pressure gauge valve
- Standard bottom liquid withdrawal valve protection cage (Not offered on competitors tanks) Allows for ground connection of NH3 hose, creates a more consistent flow, and eliminates the need to crawl on the tank
- Grab bars for stability, located on roll cage
- Outfitted with Squibb Taylor valves and gauges
- Dry Weight: 4,800 lbs (apprx)
General Specifications
Conforms to the latest edition of the ASME code for pressure vessels.
Section VIII, Division 1
Complies with CGA G-2.1
Registered with the National Board
2000 Gallon (48" OD)
- Standard (2) 1 1/2" liquid withdrawal valves
- Standard (5) fill/vapor valves
- Standard bleeder/pressure gauge valve
- 2 roll cages
- Outfitted with Squibb Taylor valves and gauges
- Squibb Taylor aluminum float gauge
- Dry Weight 6,500 lbs (apprx)
Liquid withdrawal valves are 1 1/2" tank connection, 1 1/4" outlet connection with 60 gpm flow rate.
Fill and vapor valves are 1 1/2" tank connection, 1 1/4" outlet connection, with fill rate of 150 gpm.
General Specifications
Conforms to the latest edition of the ASME code for pressure vessels.
Section VIII, Division 1
Complies with CGA G-2.1
Registered with the National Board
2000 Gallon (Shorty)
- Standard (2) 1 1/2" liquid withdrawal valves
- Standard (2) 1 1/2" fill valves
- Standard vapor valve
- Standard bleeder/pressure gauge valve
- Dry weight: 8,500 lbs (apprx)
- Outfitted with Squibb Taylor valves and gauges
Liquid withdrawal valves are 1 1/2" tank connection, 1 1/4" outlet connection with 60 gpm flow rate.
Fill and vapor valves are 1 1/2" tank connection, 1 1/4" outlet connection with 150 gpm flow rate.
General Specifications
Conforms to the latest edition of the ASME code for pressure vessels.
Section VIII, Division 1
Complies with CGA G-2.1
Registered with the National Board
3000 Gallon
- Standard (2) 1 1/2" liquid withdrawal valvesdrawal valves
- Standard (2) 1 1/2" fill valves
- Standard 1 1/2" vapor valve
- Standard bleeder/pressure gauge valve
- Dry Weight: 11,000 lbs (apprx)
- Outfitted with Squibb Taylor valves and gauges.
Liquid withdrawal valves are 1 1/2" tank connection, 1 1/4" outlet connection with 60 gpm flow rate.
Fill and vapor valves are 1 1/2" tank connection, 1 1/4" outlet connection with 150 gpm flow rate.
General Specifications
Conforms to the latest edition of the ASME Code for pressure vessels.
Section VIII, Division 1
Complies with CGA G-2.1
Registered with the National Board
